Mild Steel Wire Mesh
Mesh Type Description Subtype Wire Diameter Mesh Count \ Opening Percent Open Area lbs/ft Sheet Size
Mild steel wire mesh 1 1/2″ x 1 1/2″ Woven .144 1.356 81.7 .750
Mild steel wire mesh 1″ x 1″ Woven .125 .875 76.6 1.02
Mild steel wire mesh 1″ x 1″ Woven .250
Mild steel wire mesh 3/4″ x 3/4″ Woven .125 .625 69.4 1.24
Mild steel wire mesh 1/2″ x 1/2″ Woven .125
Mild steel wire mesh 3 x 3 Woven .080 .253 57.6 1.26
Mild steel wire mesh 3 x 3 Woven .063 .270 65.6 .776
Mild steel wire mesh 4 x 4 Woven .063 .187 56.0 1.04
Mild steel wire mesh 4 x 4 Woven .047 .203 65.9 .576
Mild steel wire mesh 6 x 6 Woven .063 .104 38.9 1.63
Mild steel wire mesh 6 x 6 Woven .047 .120 51.8 .882
Mild steel wire mesh 6 x 6 Woven .035 .132 62.7 .481
Mild steel wire mesh 8 x 8 Woven .047 .078 38.9 1.20
Mild steel wire mesh 8 x 8 Woven .028 .097 60.2 .411
Mild steel wire mesh 10 x 10 Woven .035 .065 42.3 .831
Mild steel wire mesh 10 x 10 Woven .025 .075 56.3 .412
Mild steel wire mesh 12 x 12 Woven .023 .060 51.8 .422
Mild steel wire mesh 14 x 14 Woven .020 .051 51.0 .372
Mild steel wire mesh 16 x 16 Woven .018 .045 50.7 .345
Mild steel wire mesh 20 x 20 Woven .016 0.34 46.2 .344
Mild steel wire mesh 30 x 30 Woven .012 .021 40.8 .294
Mild steel wire mesh 40 x 40 Woven .010 .015 36.0 .276
Mild steel wire mesh 60 x 60 Woven .0075 .010 37.5 .237

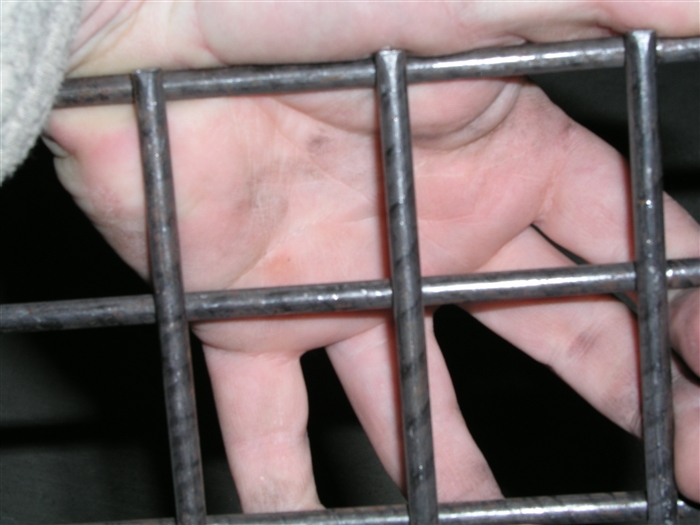

Mild steel wire mesh 2″ x 2″Â Â Welded .250 64 lbs/panel 4′ x 8′
Mild steel wire mesh 2″ x 2″ Welded .187 36lbs/panel 4′ x 8′

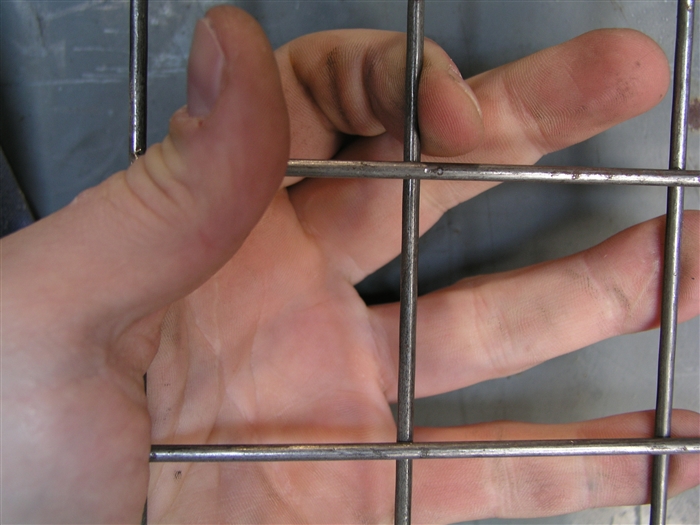

Mild steel wire mesh 2″ x 2″ Welded .125 17lbs/panel 4′ x 8′
Mild steel wire mesh 3″ x 3″ Welded .185 24lbs/panel 4′ x 8′
Mild steel wire mesh 4″ x 4″ Welded .250 32lbs/panel 4′ x 8′
Mild steel wire mesh 4″ x 4″ Welded .187 18lbs/panel 4′ x 8′
Mild steel wire mesh 1″ x 1″ Welded .133 36lbs/panel 4′ x 8′
Mild steel wire mesh 1 1/2″ x 1 1/2″ Welded .133 23lbs/panel 4′ x 8′
Mild steel wire mesh 2″ x 1″ Welded .133 4′ x 8′
Mild steel wire mesh 1″ x 1″ Welded .097 20lbs/panel 4′ x 8′
Mild steel wire mesh 1″ x 1″ Welded .097 4′ x 8′
Mild steel wire mesh 1/2″ x 1/2″ Welded .063 .437 76.4 4′ x 8′
